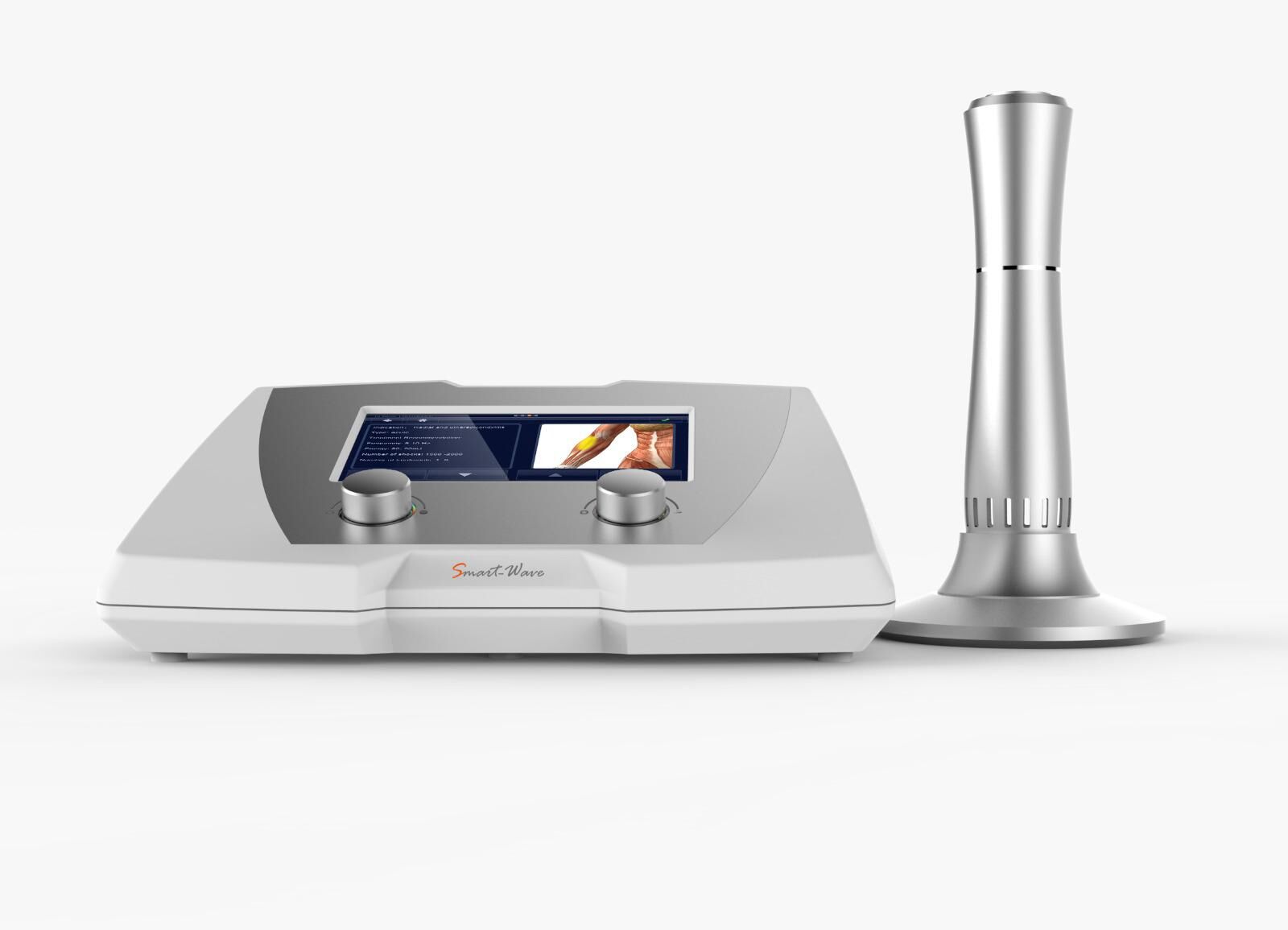

ESWT Shock Wave Therapy Equipment Smartwave BS-SWT2X

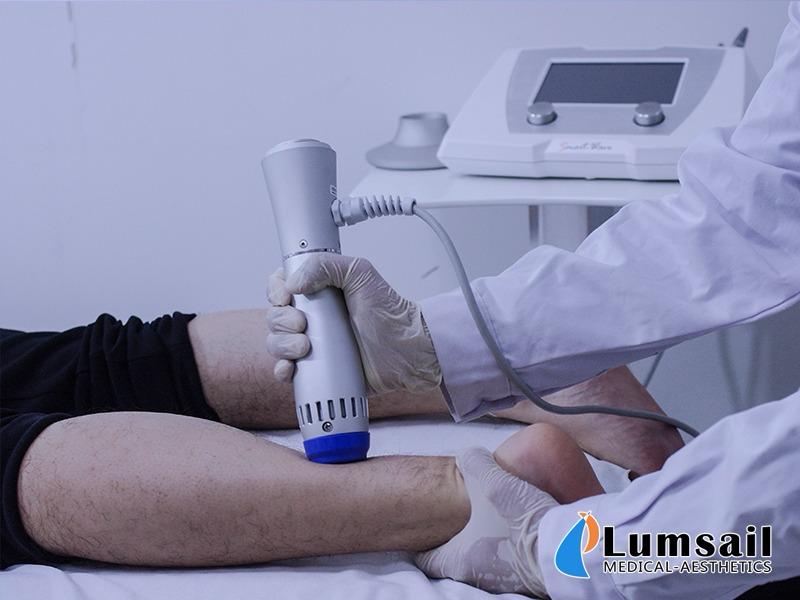

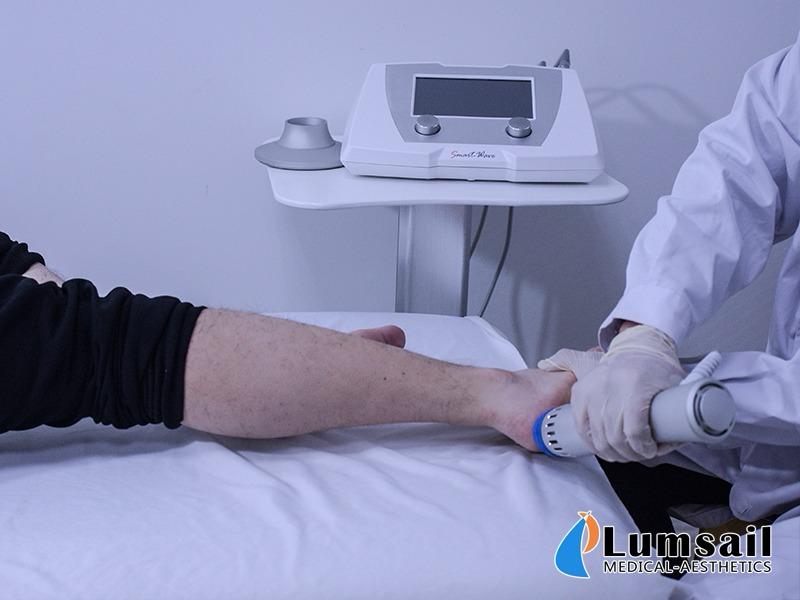

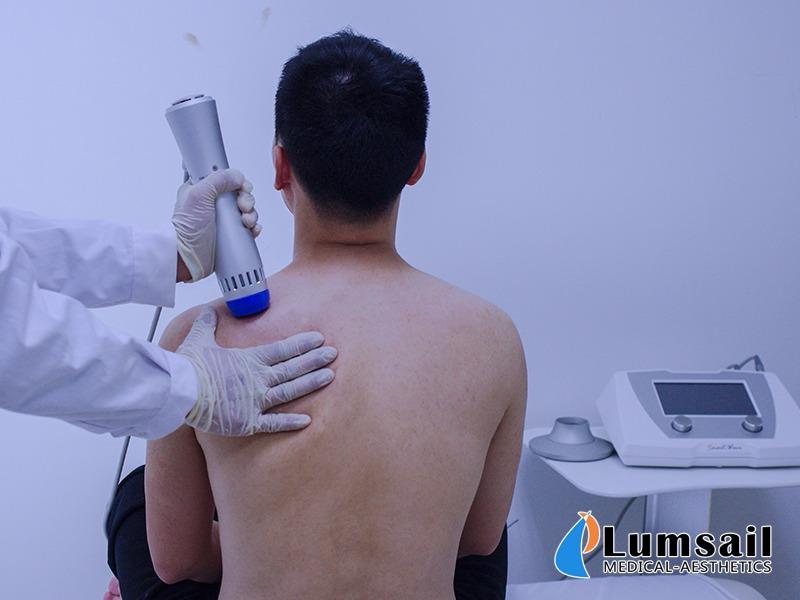

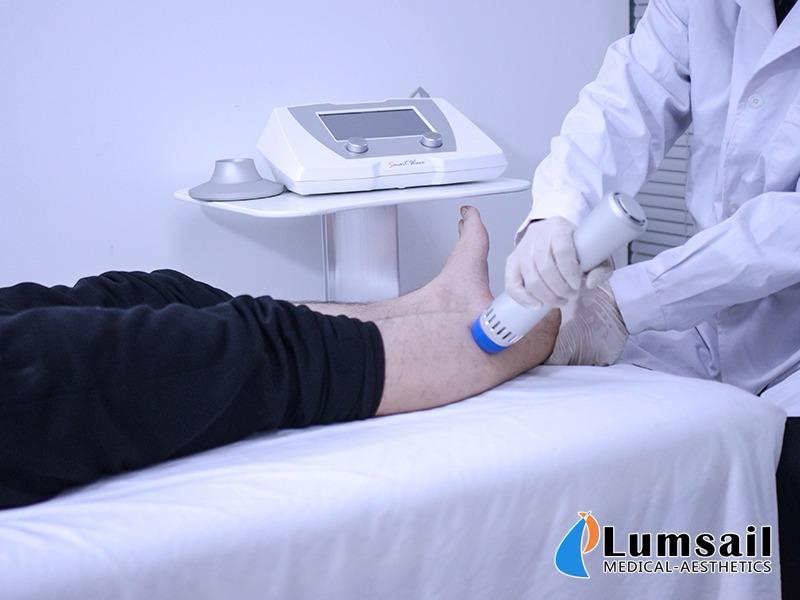

The SmartWave BS-SWT2X model produces a mechanical pressure wave transmitted to the human body through an applicator head, radiating into the tissue. As the mechanical energy is absorbed by the tissue, its intensity diminishes with distance from the application site. This stress induces reactions in the tissue, positively affecting various orthopedic and neurological conditions. Consequently, the outcome includes pain relief, encompassing reductions in both acute and chronic pain.

Features:

Ports for two handpieces

Indication menu with treatment protocols

Full alloy made transmitters

Energy from 10 to 190 mJ

(comparable to 0.25 – 5 Bar)

Pulse frequencies from 1 to 22Hz

Comfortable shockwave pulses

Ultra-thin silicon cap with little energy loss

Long lifetime

High mobility

Easy to Operate

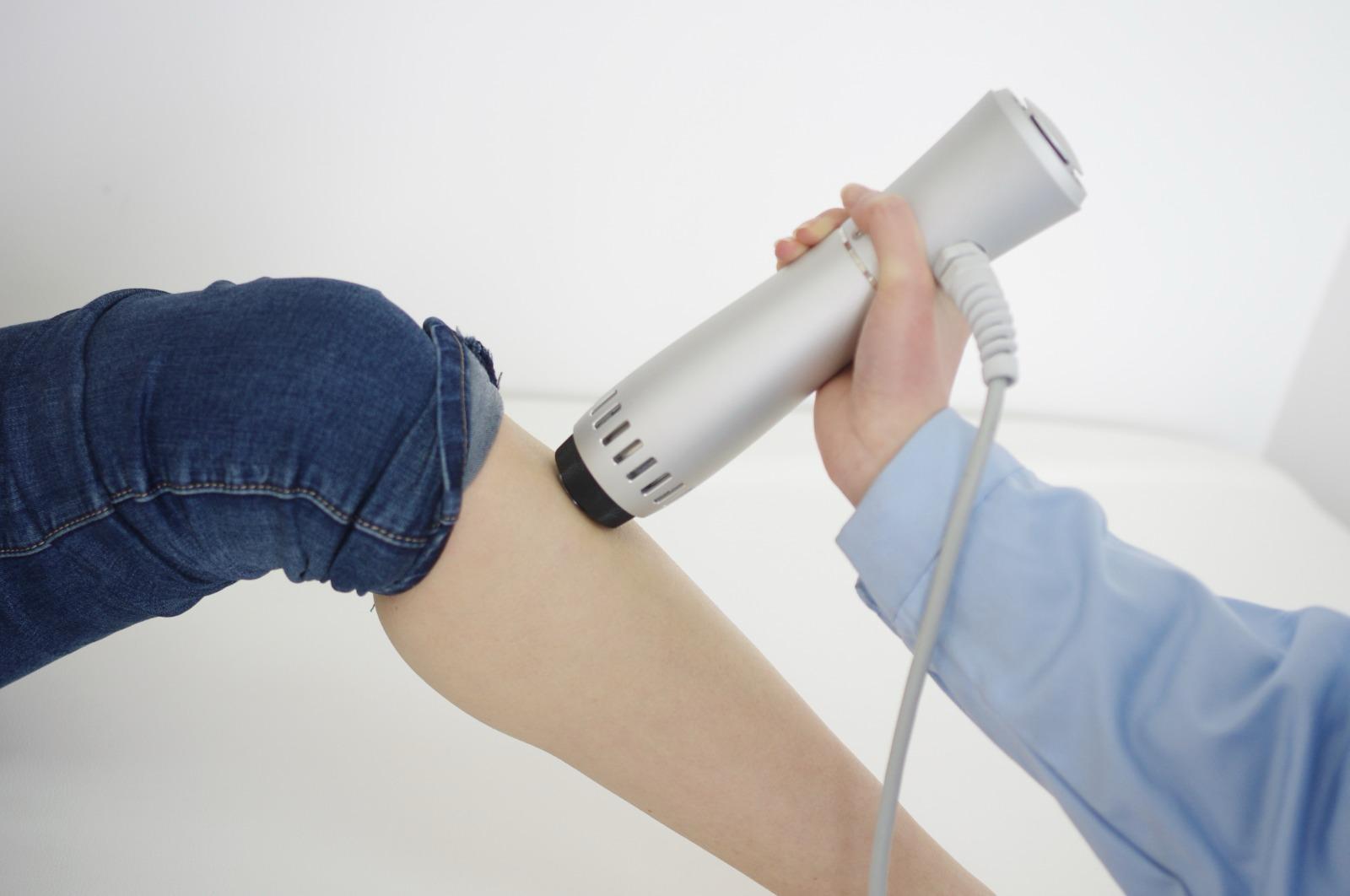

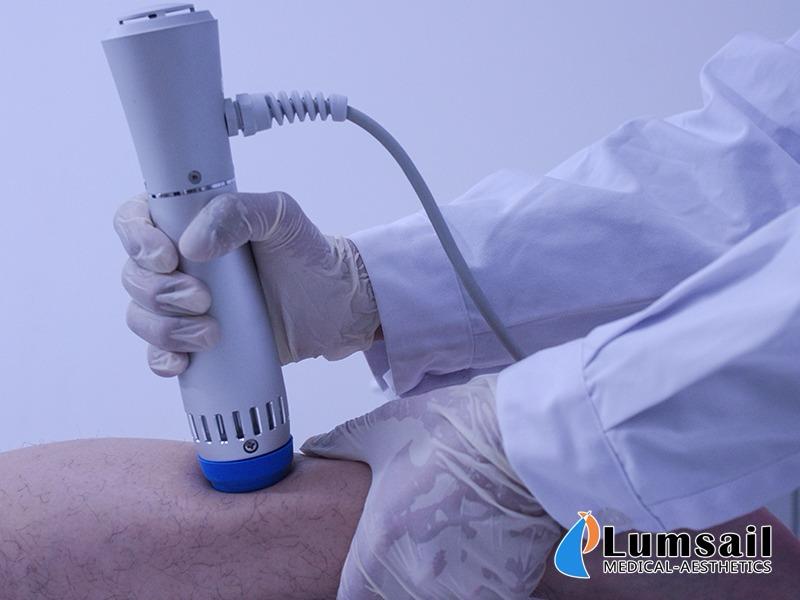

An ergonomically designed aluminum handpiece with substantial mass and ample inertia ensures an optimal energy transfer to the patient. Additionally, it offers effective protection against vibrations for healthcare professionals. The design facilitates single-handed use, allowing the other hand to be free for adjusting treatment parameters during sessions.

Omni-directional Foot Switch

The user-friendly foot switch operation activates the handpiece, allowing clinicians to focus on precise hand positioning during treatment. An optional accessory, the default foot pedal, operates as a one-way model.

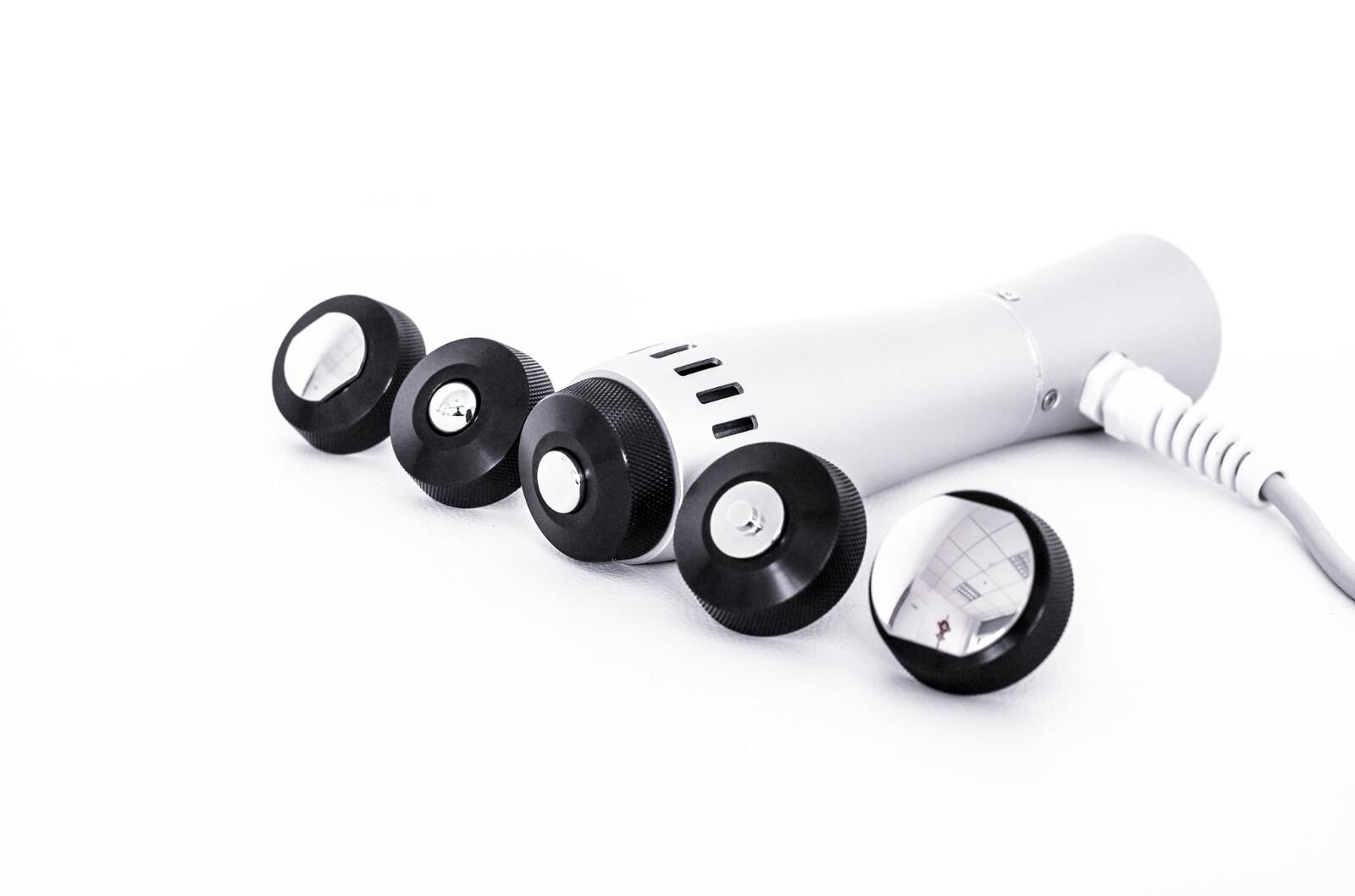

Easy to exchange applicators

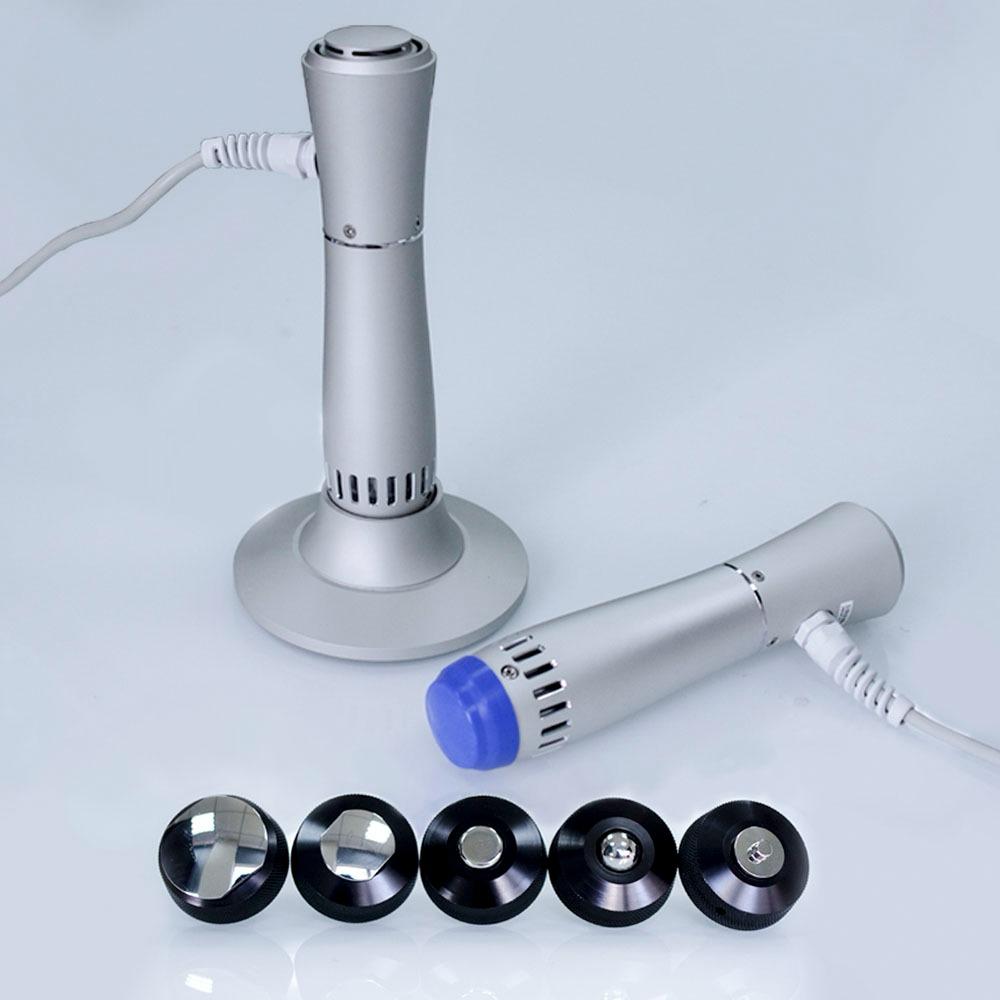

The SmartWave BS-SWT2X comes with a range of applicator heads in various sizes and shapes. These heads can be easily and swiftly exchanged without the need for tools, ensuring optimal adaptability for treatment. Made entirely of alloy, both in the skin-touch part and the base, it guarantees a prolonged lifespan and consistent shockwave output performance.

Technical Specifications:

Technology :
Compressor-free ballistic Radial Pulse Therapy system with electromagnetic generator for projectile acceleration

Power Levels:
10 to 190 mJ, stepping 10mJ (equivalent to 0.1-5 bar)

Modes:
Frequencies from 1 to 22 Hz
Continuous or Burst Mode (4 modes)

Programs:
28 or 40 preset programs, customisable

*Controls:
7″ color touchscreen for all software operations
Rotary control for energy level and for frequency
Hand piece operation with multi-directional foot switch

Power Consumption:
100 – 240 V / 50/60 Hz, max. 250 VA

Dimensions:
12.7 x 9.3 x 5.1mm inches (L/W/H)

Weight:
2.7kg (6 lbs., without hand piece)

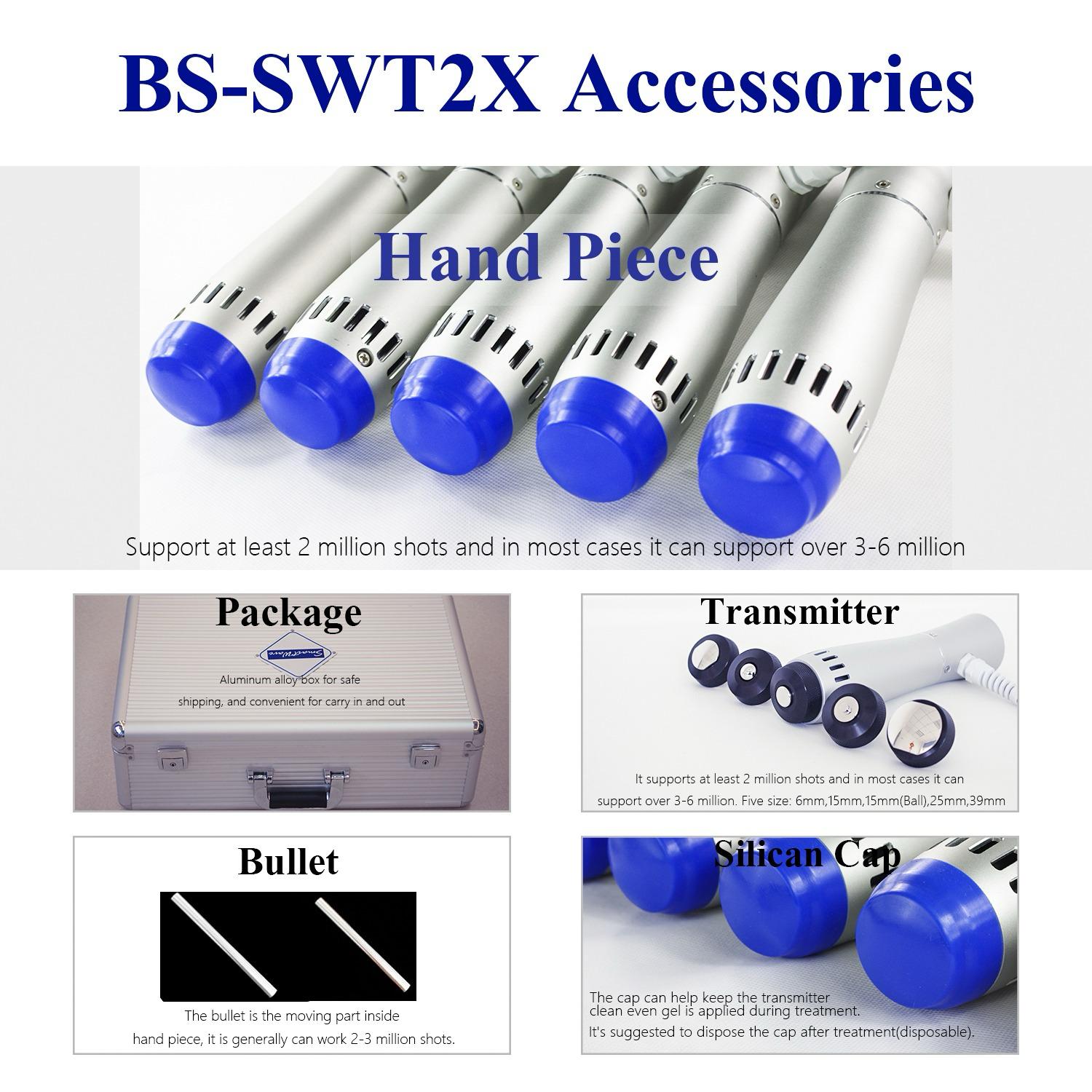

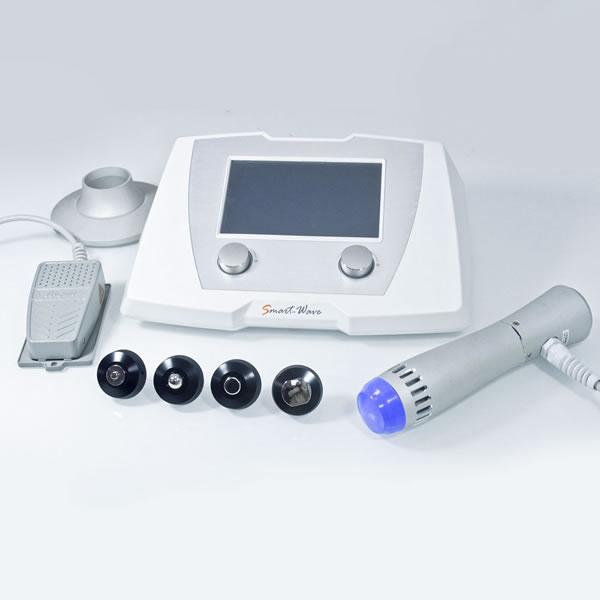

Package:
Foot switch
Power cable
Transmitters (5pcs)
10 bio-compatible silicon caps
1 handpiece
Aluminum transport case

Options:
2nd hand piece (for dual ports)
Multi-directional foot switch
Move cart

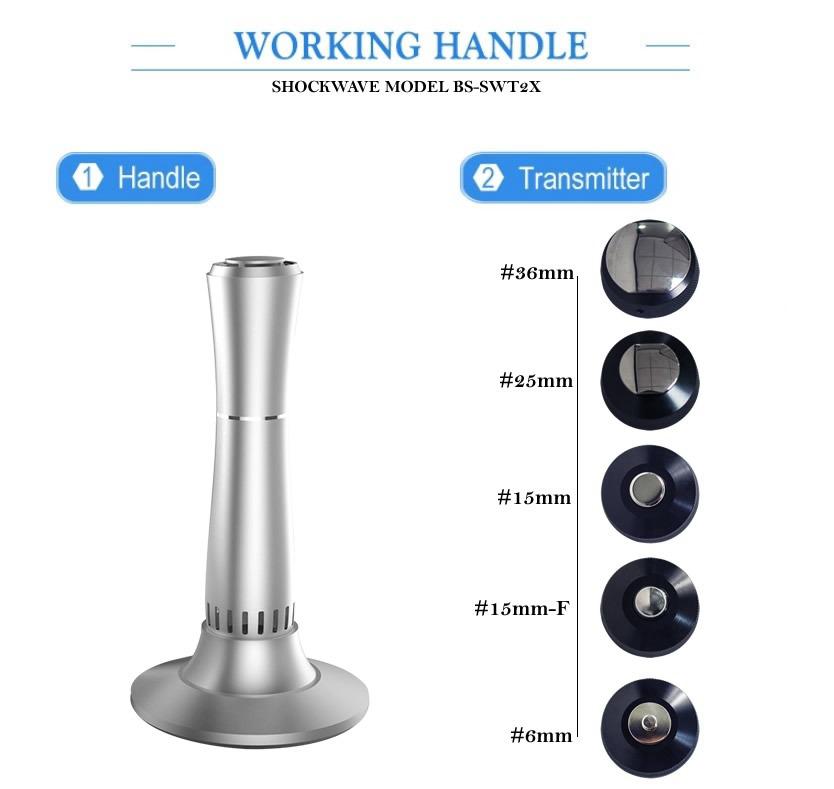

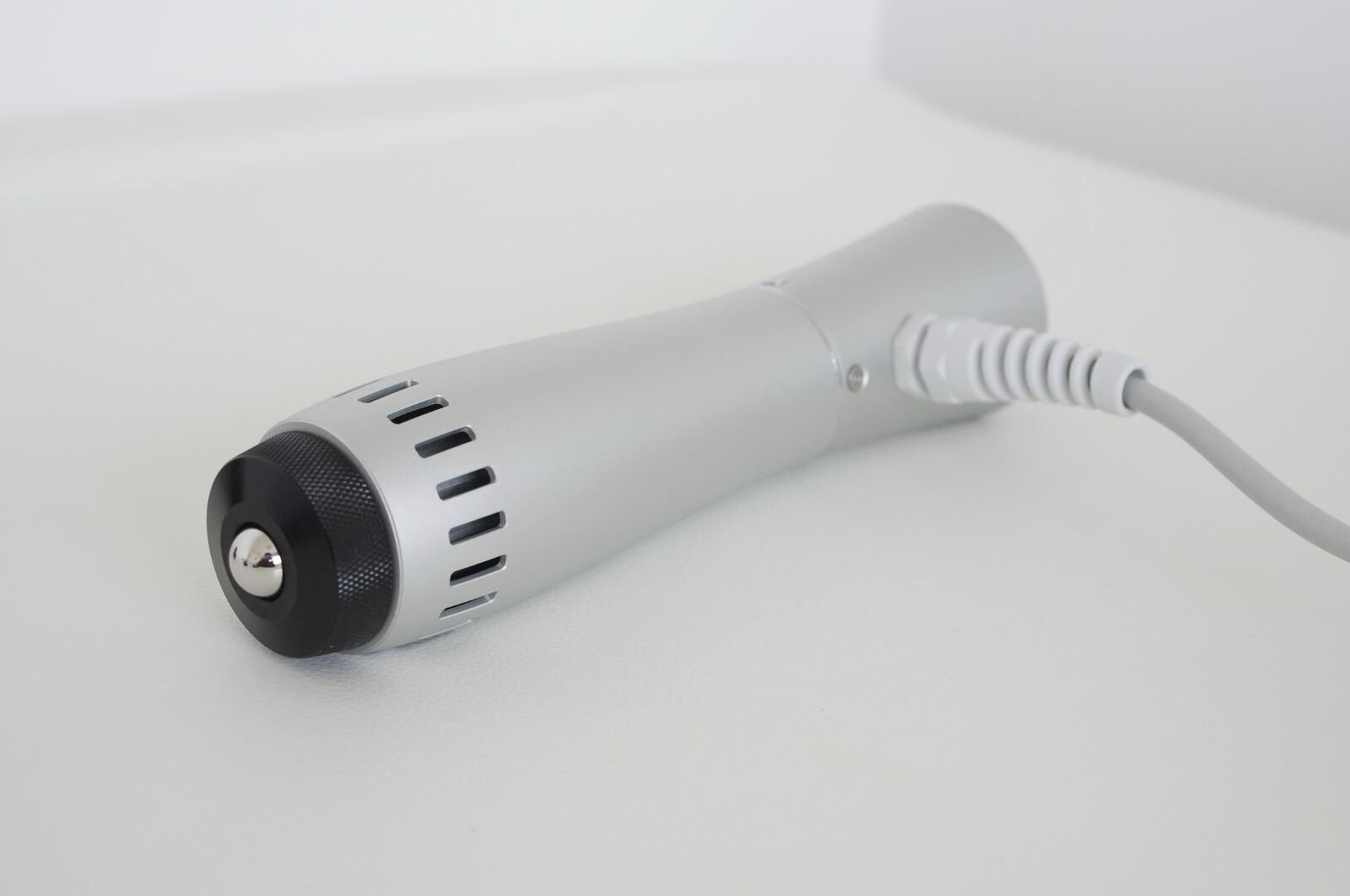

ESWT Pulse Handpiece

ESWT Generator:
Ergonomic, with anodized aluminum housing and cooling fan
Electromagnetic, integrated

Dimension:
225mm L, 51mm diameter (max)

Weight:
780g (1.72lbs)

Warranty:
2,000,000 pulses

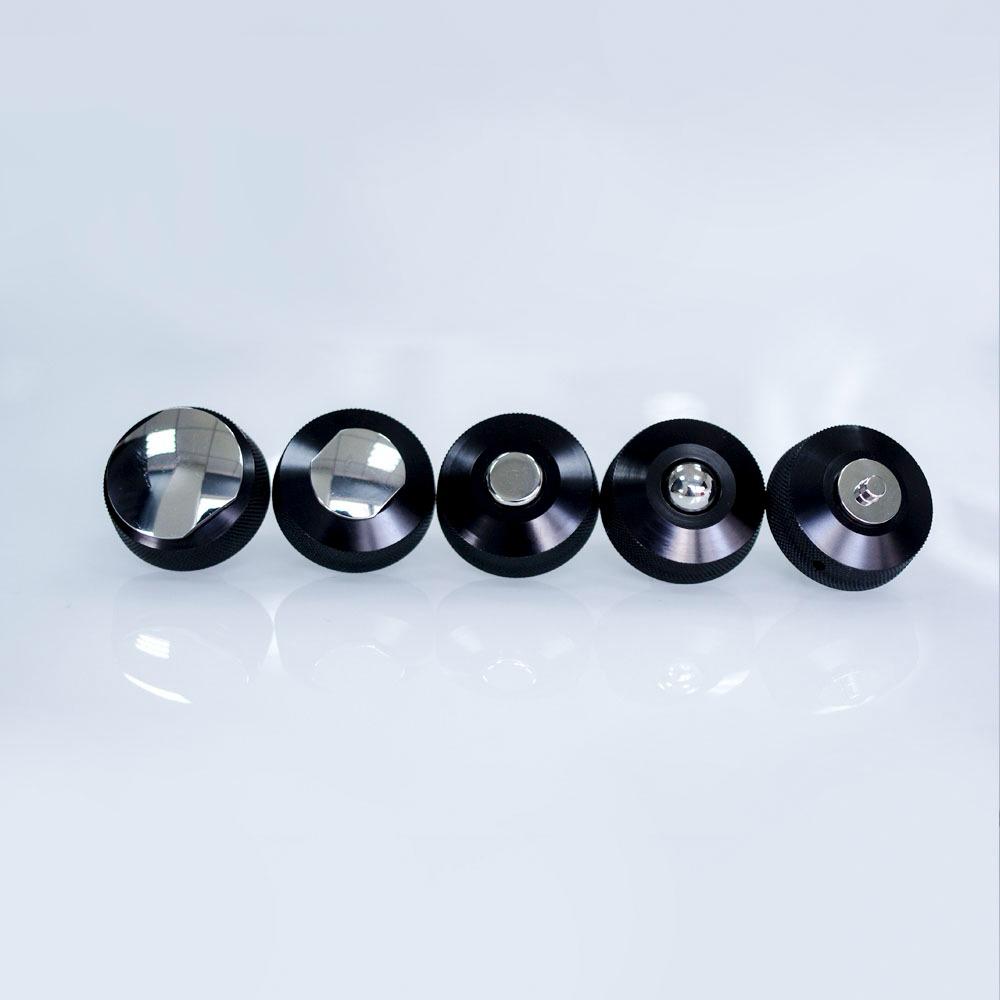

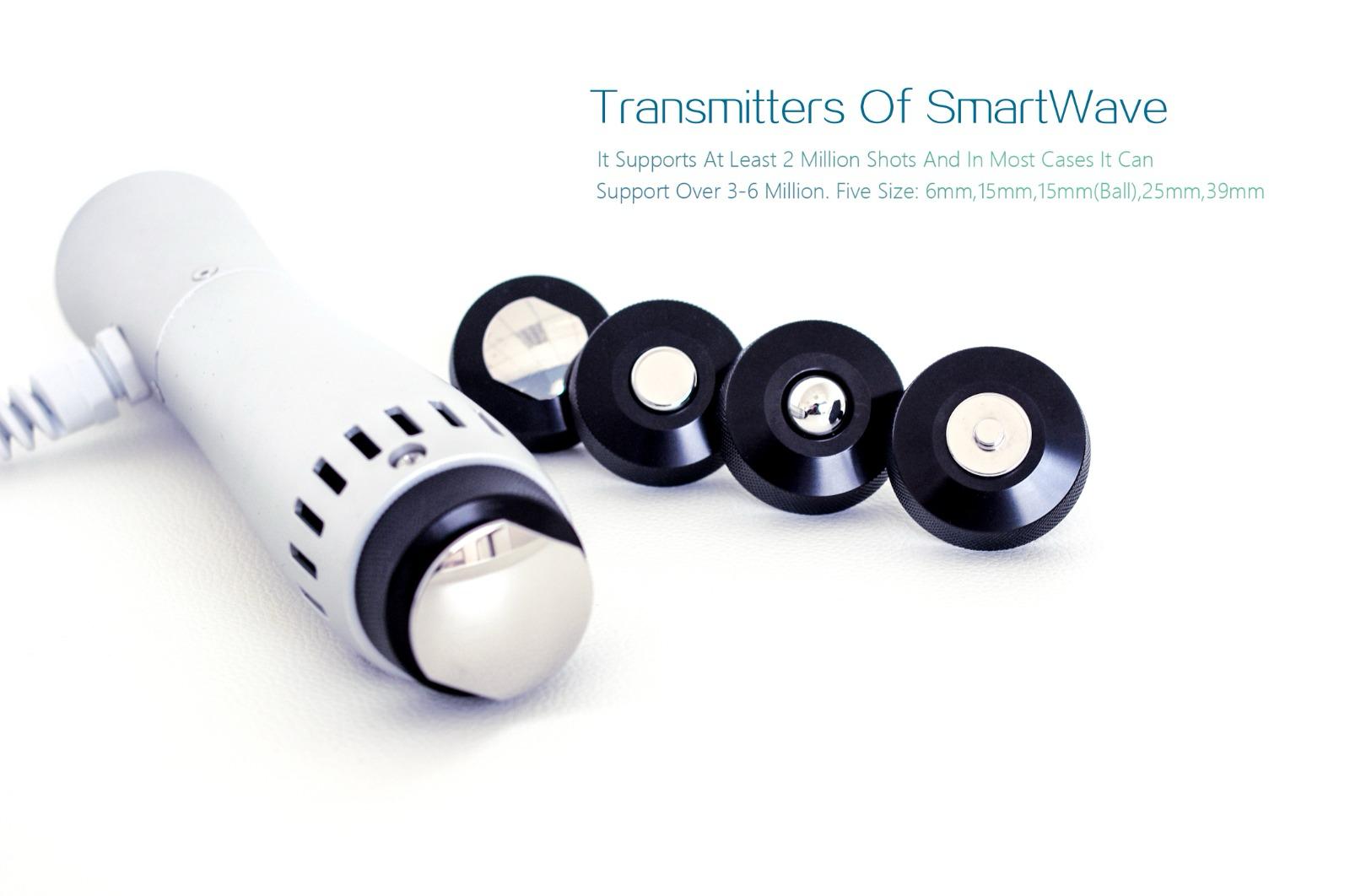

Applicator heads:
6mm / 15mm B Type / 15mm U Type / 25mm / 35mm
Full alloy
Changeable without tools
